Customized 4KW 6KW Off-grid Solar System with Voltronic Inverter For Home Use

Home

Off-grid Solar System

Customized 4KW 6KW Off-grid Solar System with Voltronic Inverter For Home Use

4KW 6KW solar off-grid solar system with lithium battery,Voltronic off-grid inverter and structure, cable. Widely used for residential and home.

Payment :
30% by T/T in advance
Product Origin :
Hefei, China
Shipping Port :
Shanghai or Ningbo
Lead Time :
10-15 working days

Inquiry now

categories

How can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact Us

New Products

Product Details

1. All components are warrantied.

2. Reliable after-sale service during warranty period,replace or repair all parts.

3. Product dimensions and physical appearance in this data sheet are nominal.

4. Pinergy Solar reserves the right to make the product changes from time to time.

5. Installation and training service .

Products Details

Photovoltaic Module

* 550W, A grade mono perc solar panel, A grade . Size: 2279*1134*35. IP 68 junction box . Packaged with wooden box.

Jinko/Longi/JA/Trina/Canadian/PNG SOLAR and etc

* P type/ N type mono-facial or bifacial available.

* PID-Free, Anti-salt mist corrosion and Anti-Amonia .

* 12 years materials and processing warranty, 25years 80% power output warranty.

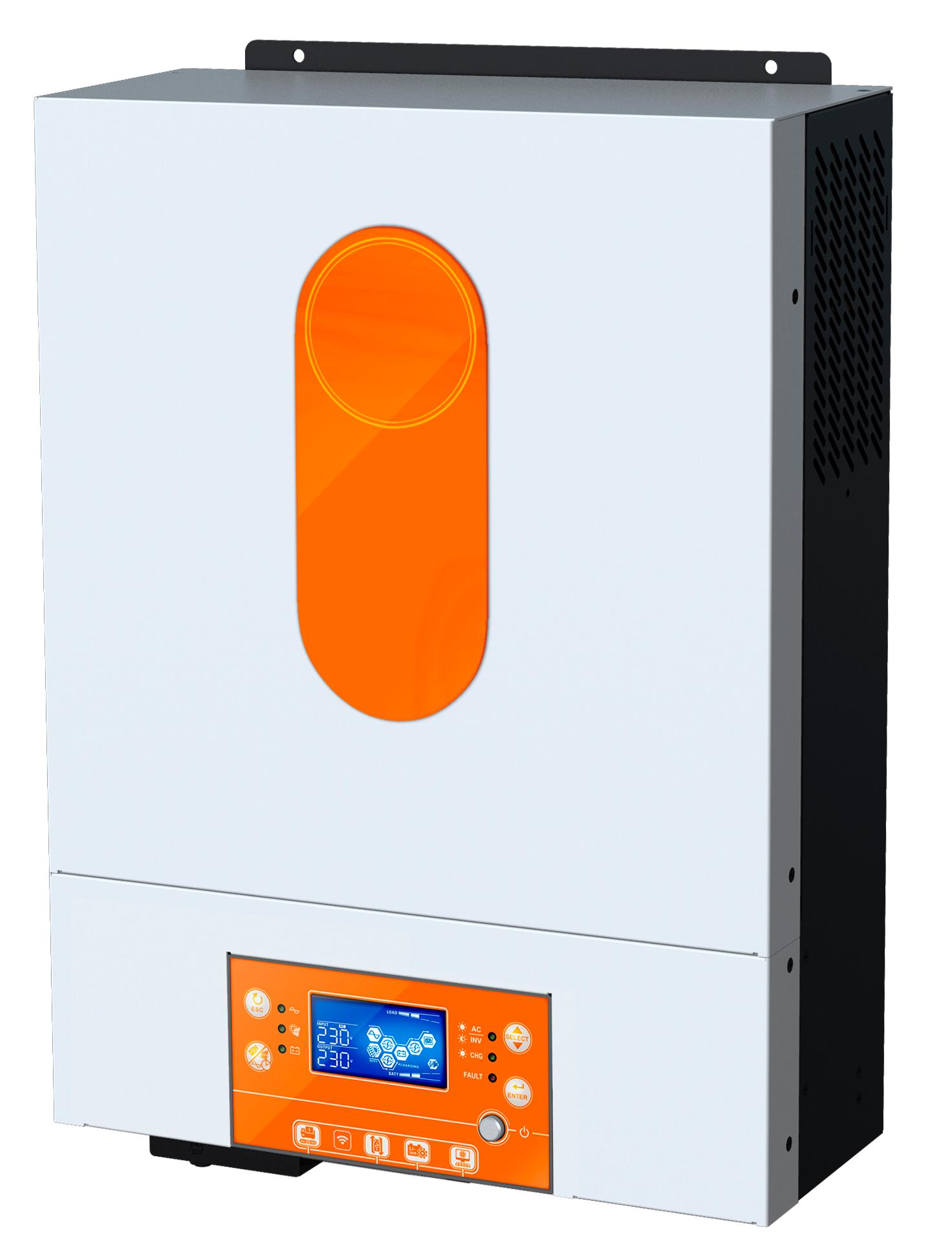

Off-grid Inverter-

6KW, Voltronic brand, 3-phase, MPPT built-in.

• Detachable LCD control module with various communications

• Maximum PV input current 27A

• Dual output for smart load management

• Built-in WiFi for mobile monitoring (App is available)

• Supports USB On-the-Go function

• Reserved communication port (RS485, CAN-BUS or RS232) for BMS

• Battery independent design

• Battery equalization extends lifecycle

• User-friendly LCD operation

• Replaceable fan design for ease of maintenance

Lithium Battery

* 48V 100AH/ 102AH, low voltage.

* Gotion High-Tech/EVE brand/Kogger Higee, new A grade cells. BMS compatible with Deye inverter.

* 80% after 6000 cycle times

* Compatible with Deye/Victron/SMA and other famous inverter supplier

* 5 years warranty

Grid-connected Cabinet

* Breaker / SPD/ Stainless steel (outdoor) or plastic ( indoor ) box

* Lightening protection, short-circuit protection, over-current protection

* Earth-leakage protection and anti-islanding protection

* Customized based on actual needs

* 5years warranty

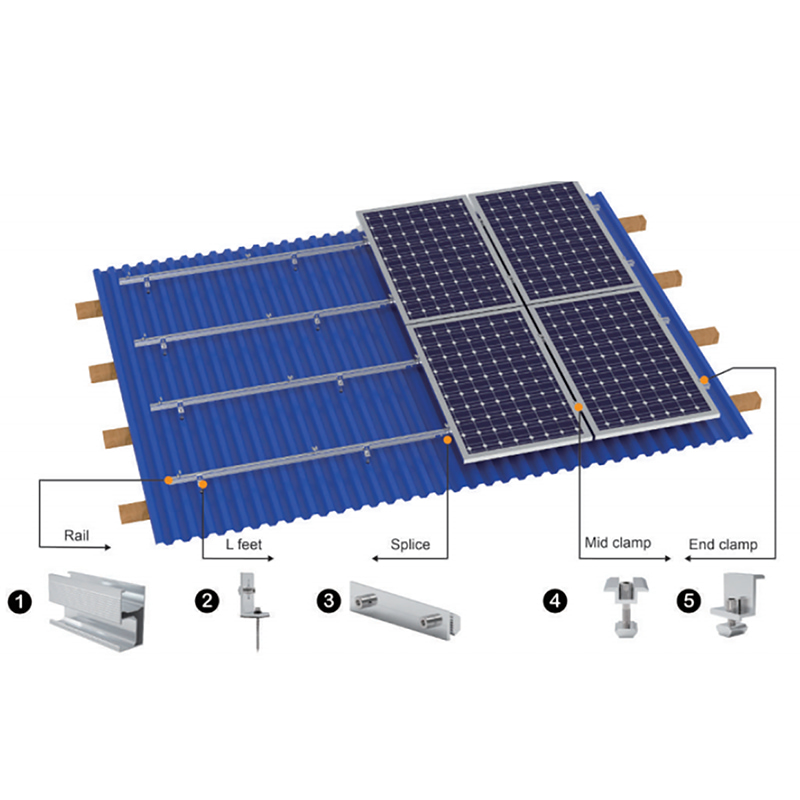

Solar Mounting System

* Pitched tiled/ flat roof mounting/ ground /carport mounted structure

* Mid-clmaping and end-clamping and all accessories.

* Hot-dip galvanized carbon steel or aluminum alloy

* Compatible with all sizes of solar modules

* 10 years warranty

Solar Cable (DC & AC )

* PV1-F 1*4mm2 & PV1-F1*6mm2, red & black

* Tinned copper wire

* AC 0.6/1.0KV DC 1.0KV

* 100m per roll or 200m per roll

* 3 years warranty.

1. Specifications of solar panels-Jinko 580W N type Topcon

Module Type	JKM580N-72HL4 JKM580N-72HL4-V
Test Condition	STC	NOCT
Max. Power. Pmax(W)	580	436
Open Circuit Voltage Voc (Voc/V)	42.37	39.69
Short Circuit Current (Isc/A)	13.69	10.99
Voltage at Max. Power (Vmp/V)	51.02	48.46
Current at Max. Power (Imp/A)	14.47	11.68
Module Efficiency	22.45%

STC: Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5

Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s.

2. Specifications of Voltronic High-Voltage Off-grid Inverter

- Axpert VM III TWIN 4-6K

MODEL	_{Axpert VM III TWIN 4K}	_{Axpert VM III TWIN 6K}
RATED POWER	_4000VA/4000W	_6000VA/6000W
_INPUT
Voltage	_230 VAC
Selectable Voltage Range	_{170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)}
Frequency Range	_{50 Hz/60 Hz (Auto sensing)}
_OUTPUT
AC Voltage Regulation (Batt. Mode)	_{230VAC ± 10%}
Surge Power	_8000VA	_12000VA
Efficiency (Peak)	_90% ~ 93%
Transfer Time	_{10 ms (For Personal Computers) 20 ms (For Home Appliances)}
Waveform	_{Pure sine wave}
_BATTERY
Battery Voltage	_24 VDC	_48 VDC
Floating Charge Voltage	_27 VDC	_54 VDC
Overcharge Protection	_33 VDC	_63 VDC
_{SOLAR CHARGER & AC CHARGER}
Solar Charger type	_MPPT
Maximum PV Array Power	_5000W	_6000W
MPP Range @ Operating Voltage	_{60 ~ 450 VDC}	_{60 ~ 450 VDC}
Maximum PV Array Open Circuit Voltage	_500 VDC	_500 VDC
Maximum PV Input Current	_27A
Maximum Solar Charge Current	_120A	_120A
Maximum AC Charge Current	_100A	_100A
Maximum Charge Current	_120A	_120A
_PHYSICAL
Dimension, D x W x H (mm)	_{115 x 300 x 435}
Net Weight (kgs)	₉	₁₀
Communication Interface	_{USB/RS232/RS485/WiFi/Dry-contact}
_{OPERATING ENVIRONMENT}
Humidity	_{5% to 95% Relative Humidity (Non-condensing)}
Operating Temperature	_{-10°C to 50°C}
Storage Temperature	_{-15°C to 60°C}

3. Specifications of Lithium Battery

--Wall-mounted Energy Storage Battery

Model	PNG-W5	PNG-W10
Capacity	5.2KWH	10.5KWH
Cell Capacity	102AH	204AH
Max. charging/discharging current	100A	100A
BMS	1P16s	1P16s
Net Weight	48KGS	90KGS
Dimension (LWH)	695440155mm	850530140mm
Norminal Voltage	51.2V	51.2V
Working Voltage	44.8V~57.6V
Increasable (parallel connection )	Up to 15packs to be connected in parallel
Cycle Times (0.5C 25℃)	6000 times
Warranty	5years
Storage Temperature	-20℃ ~45℃
Operation Temperature	Charging 0℃ ~45℃	Discharging -20℃ ~45℃
Protection Class	IP26
Communication	RS232, RS485, CAN (Capatible with most famous brands in the markets)
