High Quality 20KW Solar Energy System For Home Power Storage Hybrid System

20kw hybrid solar system

High Quality 20KW Solar Energy System For Home Power Storage Hybrid System

20KW solar hybrid solar system with lithium battery,hybrid inverter and structure, cable. It

can be used for home use and projects.

20kW hybrid solar system is designed to maximize energy production while minimizing the

 impact on the environment.

This remarkable system combines the best of both worlds: the robustness and reliability of

a traditional grid-connected solar system with the added benefits of battery storage and

backup power capabilities. As a result,it presents an unparalleled solution for those

seeking energy independence without compromising on reliability.

  • Payment :

    30% by T/T in advance

  • Product Origin :

    Hefei, China

  • Shipping Port :

    Shanghai or Ningbo

  • Lead Time :

    10-15 working days
Inquiry now

BOM for 15/20/25KW Hybrid Solar Energy System



Model
10KW Hybrid Solar System
15KW Hybrid Solar System
20KW Hybrid Solar System
25KW Hybrid Solar System
Solar Panel
N type Topcon, 580W*18pcs
N type Topcon, 580W*26pcs
N type Topcon, 580W*35pcs
N type Topcon, 580W*43pcs
Hybrid inverter
Deye 10KW, LV, with MPPT Built-in
Deye 15KW,  HV, with MPPT Built-in
Deye 20KW, HV, with MPPT Built-in
Deye 25KW, HV, with MPPT Built-in
Lithium Battery Pack
51.2V 102AH*4pcs
51.2V 102AH*6pcs, high-voltage box
51.2V 102AH*8pcs, high-voltage box
51.2V 102AH*10pcs, high-voltage box
Grid-connected Cabinet
SPD, Breaker, Swithers and etc
DC Cable
PV1-F1*4mm2, red +black
AC Cable
International Standard
Solar Mounting Bracket
Hot-dip galvanized carbon steel or aluminum alloy , for metal/concrete/tiled rooftop/ground/carpport
Accessories
MC4 connectors, grounding cables and etc
Optimizers
Optical

Note:


1. All components are warrantied.

2. Reliable after-sale service during warranty period,replace or repair all parts.

3. Product dimensions and physical appearance in this data sheet are nominal.

4. Pinergy Solar reserves the right to make the product changes from time to time.

5. Installation and training service .

Products Details


Photovoltaic Module



* N type Topcon, Jinko/ JA / Longi and etc



* 100% A+ grade with positive tolerance.



* IEC61215/IEC61730

/ISO9001/ISO14001/ISO45001

/MCS/FIDE/ RETIE certifications and etc.



* P type/ N type mono-facial or bifacial available.



* PID-Free, Anti-salt mist corrosion and Anti-Amonia .



* 12 years materials and processing warranty, 25years 80% power output warranty.



Hybrid Inverter-

Higher yields / Safe & Reliable / Smart / User-friendly

*Colorful touch LCD, IP65 protection .



*AC couple to retrofit existing solar system.



*Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel



*Max. charging/discharging current 140A



*6 time periods for battery charging/ discharging.



*Be equipped with RS485/CAN port for battery communication.



Lithium Battery

* 48V /51.2V low voltage, safe

* A grade cells from Gotion high-tech 3.2V 100AH/102AH/104AH or EVE 3.2V 102AH, Top brand manufacturer

* 80% after 6000 cycle times

* Compatible with Deye/Victron/SMA and other famous inverter supplier

* 5 years warranty



Grid-connected Cabinet
* Breaker / SPD/ Stainless steel (outdoor) or plastic ( indoor ) box

* Lightening protection, short-circuit protection, over-current protection

* Earth-leakage protection and anti-islanding protection

* Customized based on actual needs

* 5years warranty

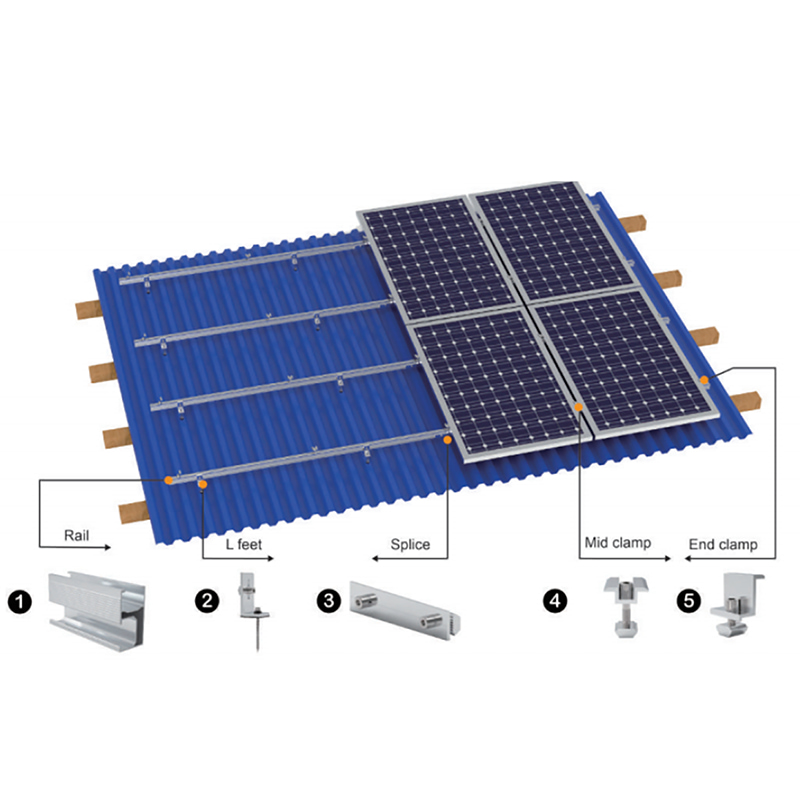

Solar Mounting System

* Pitched tiled/ flat roof mounting/ ground /carport mounted structure


* Mid-clmaping and end-clamping and all accessories.

* Hot-dip galvanized carbon steel or aluminum alloy

* Compatible with all sizes of solar modules

* 10 years warranty



Solar Cable (DC & AC )

* PV1-F 1*4mm2 & PV1-F1*6mm2, red & black

* Tinned copper wire

* AC 0.6/1.0KV DC 1.0KV

* 100m per roll or 200m per roll

* 3 years warranty.



1. Specifications of solar panels-Jinko 580W N type Topcon
Module Type
JKM580N-72HL4
JKM580N-72HL4-V
Test Condition
STC
NOCT
Max. Power. Pmax(W)
580
436
Open Circuit Voltage Voc (Voc/V)
42.37
39.69
Short Circuit Current (Isc/A)
13.69
10.99
Voltage at Max. Power (Vmp/V)
                51.02
48.46
Current at Max. Power (Imp/A)
14.47
11.68
Module Efficiency
22.45%
STC: Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s.

2. Specifications of Deye High-Voltage Hybrid Inverter
- SUN15/20/25K-SG01HP3-EU-AM2
  • #

  • #

  • #

  • #





Model
SUN-15K-SG01
HP3-EU-AM2
SUN-20K-SG01
HP3-EU-AM2
SUN-25K-SG01
HP3-EU-AM2
Battery Input Data
Battery Type
Lithium-ion
Battery Voltage Range (V)
160-700
Max. Charging Current (A)
37
50
Max. Discharging Current (A)
37
50
No. of Battery input
1
External Temperature Sensor
Optional
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
19500
26000
32500
Max. DC Input Voltage (V)
1000
MPPT Range (V)
150-850
Start-up Voltage (V)
180
Full Load DC Voltage Range
420-850
500-850
625-850
Rated DC Input Voltage (V)
600V
PV Input Current (A)
26+20
26+26
No.of MPPT Trackers
2
Max. PV Isc(A)
39+30
39+39
No.of Strings Per MPPT Tracker
2+1
2+2
AC Output Data
Rated AC Output and UPS Power (W)
15000W
20000W
25000W
Max. AC Output Power (W)
16500W
22000W
27500W
Peak Power (off grid)
1.5 time of rated power, 10 S
AC Output Rated Current (A)
22.8/21.8
30.4/29
37.9/36.3
Max. AC Output Current (A)
25/24
33.4/31.9
41.7/39.9
Max. Three-phase Unbalanced Output Current(A)
80
80
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range(V)
220/380, 230/400 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Grid Connection Form
3L+N+PE
Total Harmonics Current Distortion (THDi)
<3% (of nominal power)
DC Current Injection
<0.5% In
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional)
Over Voltage Category
DC Type II/AC Type III
Certififications and Standards
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃ )
-40 to +60℃, >45℃ Derating
Cooling
Smart cooling
Noise (dB)
≤55 dB
Communication with BMS
CAN
Weight (kg)
30.5
Size (mm)
408×638×237 (Excluding Connectors and Brackets)
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 years/10years


3. Specifications of Lithium Battery
--Wall-mounted Energy Storage Battery
Nominal Voltage (V)
51.2
Nominal Capacity (WH)
5120
Usable Capacity (WH)
4608
Discharge Voltage (V)
46
Charge Voltage (V)
56
Recommend Charge/ Discharge Current (A)
50
Max. Charge/ Discharge Current(A)
100(3s)
Communicaiton
RS485/CAN/Bluetooth
Working Temperature
0-40℃
Storage Temperature
-20-70℃
Humidity
10%-80%
Certification
CE/ IEC/ UN38.3/ MSDS
Design Service Life
10 years+
Cycle Life
>6000@90%DOD(25±5℃)
Electricial Design Redundancy
>20%
Dimension
482*463*178mm
Weight
48.2kgs

Package and Delivery

  • #

  • #

  • #




  • #

  • #

  • #




Project



Exhibition

  • #

  • #

  • #
