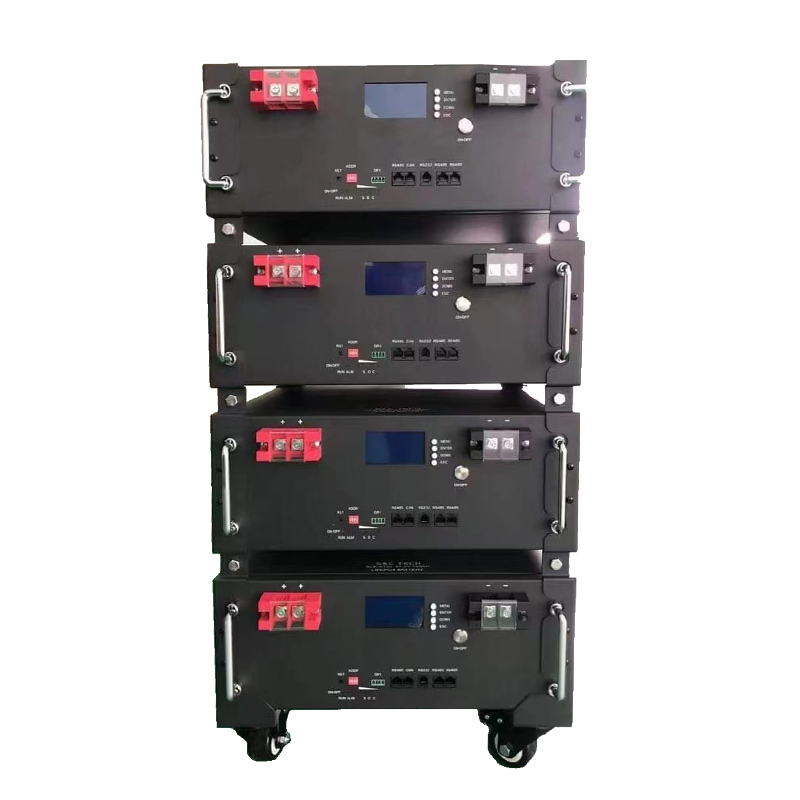

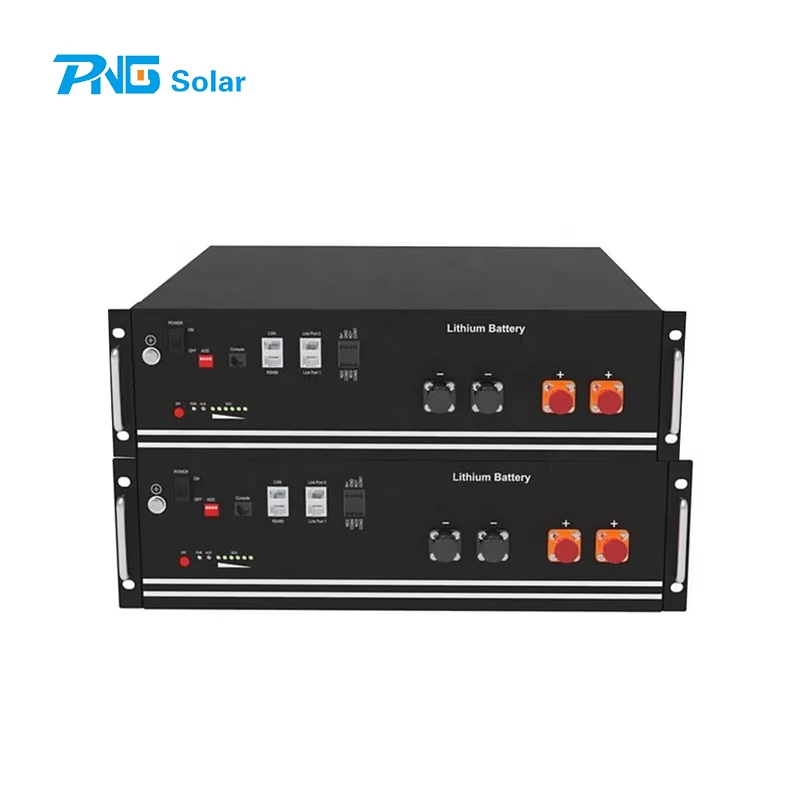

51.2V 100AH/200AH Rack Mounted Lithium Battery Pack, Life04 battery. Household use.
Payment :
30% by T/T in advanceShipping Port :
Shanghai or NingboLead Time :
10-15 working days after paymentsAdvantages:
High performance traction* LiFePO4 100Ah lithium battery replaces a 200Ah
lead battery
Safest lithium (LiFePO4)technology
Long service life
High discharge current
Light weight
Low automatic discharge
| Model | PNG-PDU-5U-5kw-Uniphase |
PNG-PDU-5U-10kw-Uniphase |
| Cell Type | EVE-LFP prismatic battery cell-3.2V 100Ah |
EVE-LFP prismatic battery cell-3.2V 100Ah |
| Nominal Voltage | 51.2V | 51.2V |
| Nominal Capacity | 100AH | 200Ah |
| Nominal Energy | 51,2KWH(Single) | 10.24KWH(Single) |
| Electrical parameters | ||
| Voltage range | 40-58.4V | 40~58.4V |
| Depty of discharge(DOD) | ≥90% | ≥90% |
| Scalability | Support 1~8 parallel connections | Support 1~8 parallel connections |
| Structural parameters | ||
| Weight | 42kg (Single) | 84kg (Single) |
| Size (L*W*H) | 360*163*550mm (Single) | 480*197*780mm (Single) |
| Protection class | IP54(Indoor) | IP54(Indoor) |
| Cooling mode | Free cooling | Free cooling |
| Ambient temp. | Charge:0C~55°C/Discharge:-20C~60C/Storage:-10℃~45℃ | Charge:0℃~55℃/Discharge: -20C~60C/Storage:-10℃~45℃ |
| Operating humidity | 5~95%，relative humidity | 5~95%，relative humidity |
| Communication methods | CAN,RS485 | CAN,RS485 |
| Alarm & Protection | Yes | Yes |
| LED status | Alarm/Run/SOC | Alarm/Run/SOC |
| Cycle Life | ≥6000times | ≥6000times |
| Warranty | 5+5years | 5+5years |
| Certificates | UN38.3 /MSDS/CE | UN38.3 /MSDS/CE |
FAQ:
1: Can the product be shipped to my area?
We export to most countries/regions (Centre/ South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
2: How can I make payment?
100% T/T or maximum we can accept 30% T/T in advance and 70% T/T upon goods ready before shipment.
