182mm with double glass monocrystalline PV modules, 400W 405W 410W 415W 420W. Bifacial solar module. They are widely used on the floating solar system , grass and etc.
Payment :
30% by T/T in advanceProduct Origin :
Hefei, AnhuiShipping Port :
Shanghai or NingboLead Time :
10-15 working daysAdvantage:
Enhanced Energy Generation: Embrace incomparable efficiency as our bifacial 410W solar panels go above and beyond traditional unifacial panels. By harnessing sunlight from both sides, these panels have the potential to generate an impressive amount of electricity, maximizing your overall energy output.
|
Module Type |
PNGMH54-DGB8-400 |
PNGMH54-DGB8-405 |
PNGMH54-DGB8-410 |
PNGMH54-DGB8-415 |
PNGMH54-DGB8-420 |
|||||||||||||
|
Testing Condition |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
STC |
NOCT |
||||||||
|
Max. Power (Pmax/W) |
400 |
301 |
405 |
305 |
410 |
309 |
415 |
313 |
420 |
317 |
||||||||
|
Voltage at Max. Power (Vmp/V) |
31.1 |
29.2 |
31.2 |
29.4 |
31.4 |
29.6 |
31.6 |
29.8 |
31.8 | 30.0 | ||||||||
|
Current at Max. Power (Imp/A) |
12.88 |
10.31 |
12.97 |
10.38 |
13.05 |
10.45 |
13.12 |
10.52 |
13.19 | 10.59 | ||||||||
|
Open Circuit Voltage (Voc/V) |
37.1 |
34.9 |
37.2 |
35.1 |
37.4 |
35.3 |
37.6 |
35.5 |
37.8 | 35.7 | ||||||||
|
Short Circuit Current (Isc/A) |
13.77 |
11.01 |
13.86 |
11.10 |
13.95 |
11.17 |
14.04 |
11.26 |
14.13 | 11.34 | ||||||||
|
Module efficiency (%) |
20.50% |
20.76% |
21.01% |
21.27% |
21.53% | |||||||||||||
|
Power Tolerance (W) |
0~+5
|
|||||||||||||||||
Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s
| Maximum Power-Pmp (W) |
420
|
425
|
430
|
435
|
441
|
| Module Efficiency STC(%) |
21.53
|
21.80
|
22.06
|
22.34
|
22.61
|
| Maximum Power-Pmp (W) |
460
|
465
|
471 |
477
|
483
|
| Module Efficiency STC(%) |
23.58%
|
23.87
|
24.16 | 24.46 | 24.76 |
| Short Circuit Current (Isc/A) |
500
|
506
|
512
|
518
|
525
|
| Module Efficiency STC(%) | 25.63 | 25.95 | 26.26 | 26.59 | 26.91 |
|
Cell Type |
MBB MONO 182x91mm |
|
No. of Cells |
108 (6x18) |
|
Dimension |
1722x1134x30mm |
|
Weight |
25.5kg |
|
Glass |
3.2mm, Low Iron Tempered Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68, 3 diodes |
|
Output Cables |
4mm², Length 300mm or customized |
|
Connector type |
MC4 compatible |
|
MOCT Temperature |
44 C ±2 C |
|
femperature Coefficient (Pmax) |
-0.36%/C |
|
Femperature Coefficient (Voc) |
-0.28%/C |
|
femperature Coefficient (Isc) |
0.05%/C |
|
Maximum system voltage (IEC) |
1500V DC |
|
Snow / Wind |
5400Pa / 2400Pa |
|
Operating Temperature |
-40℃ ~ +85℃ |
|
Maximum series fuse rating |
25A |
|

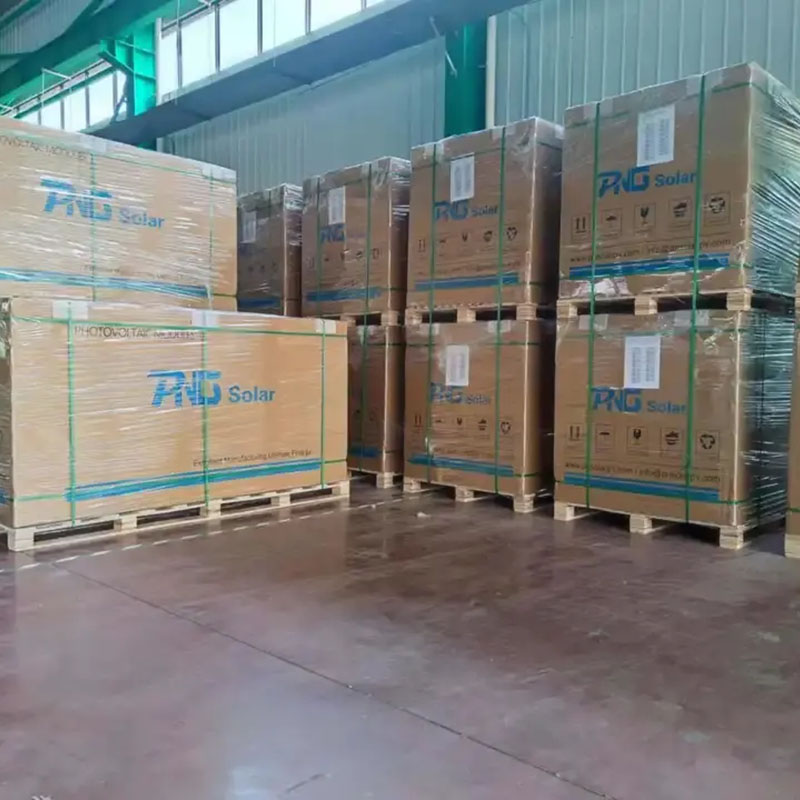

Per Pallet |
36 pcs |
|
Per 40' HQ Container |
936 pcs |
